ATD-HPM
ATD MODEL of the SAE J826 H-Point-Manikin

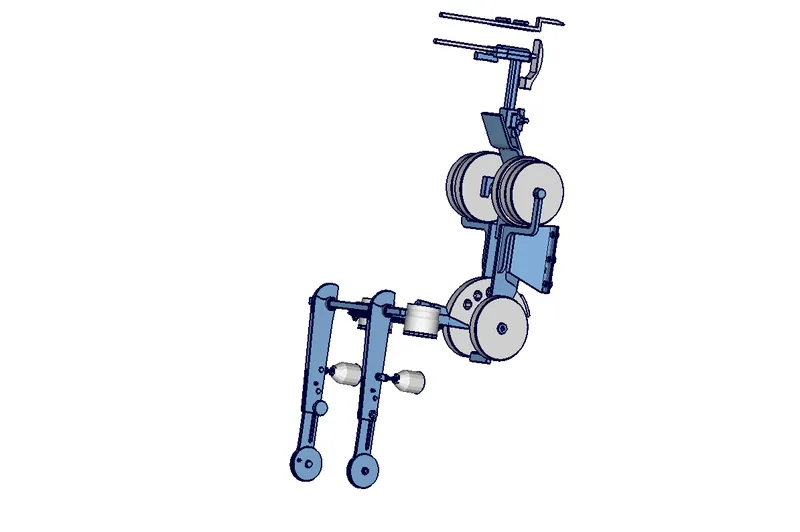

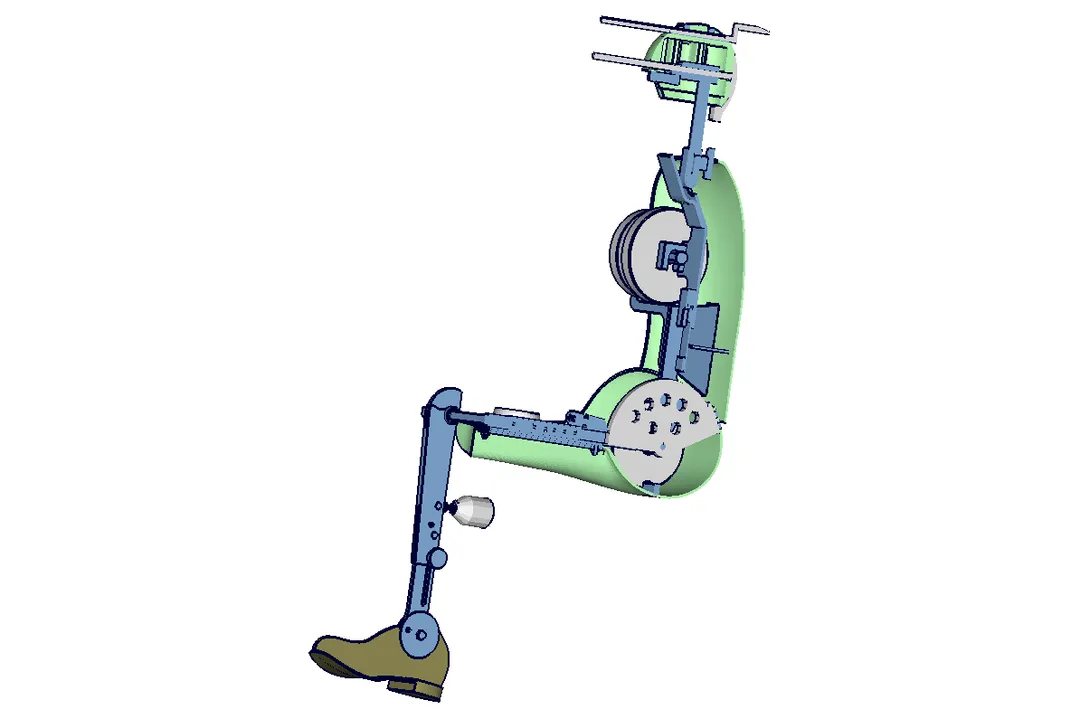

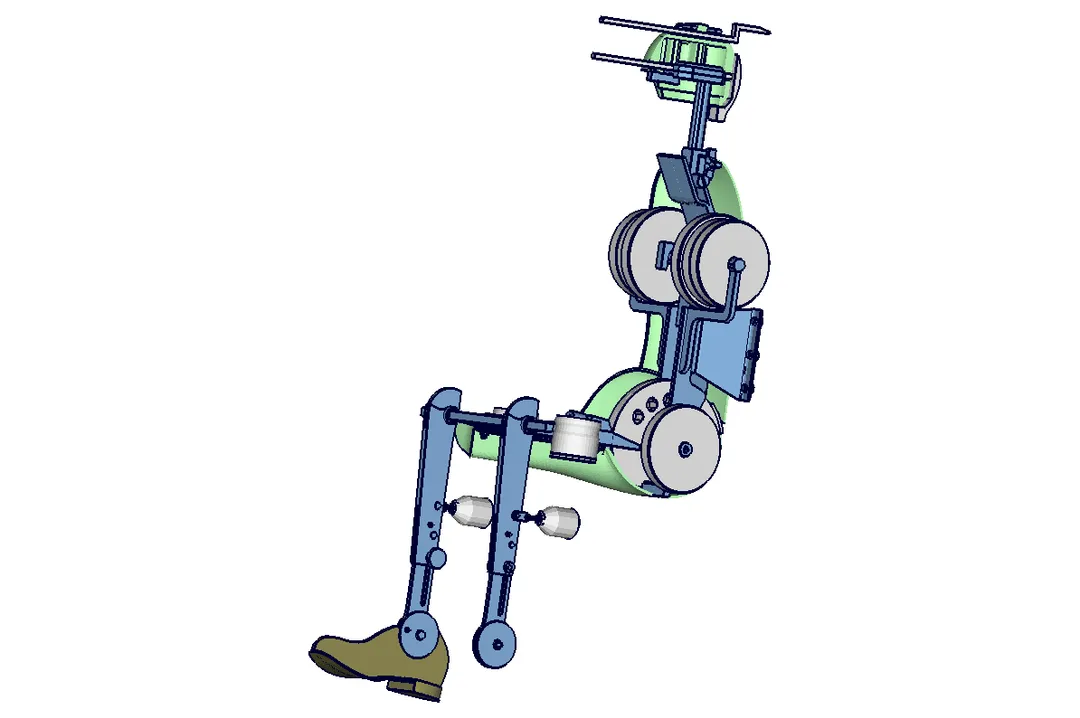

The ATD-HPM is a measuring instrument which, thanks to its modelling technology, provides a very realistic representation.
Areas of application include finite element simulations to determine seat settings and dummy positions for e.g. rear impact or whiplash.
The ATD-HPM observes the hardware constellations white shells and red shells.
Some of the special features of the ATD-HPM are
- Realistic representation of the geometry and mass distribution of the hardware manikin
- Calibration with preprocessor dialogue analogous to hardware scales
- Detailed visualisation of the measurement scales, thus comparability with laboratory measurements
Two models are available to match the hardware:
- ATD-HPM with white trays
- ATD-HPM with red shells
